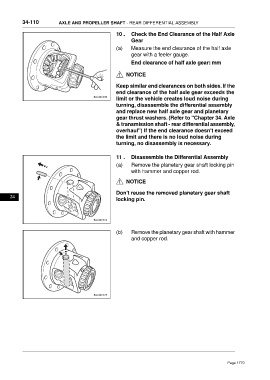

34-110 AXLE AND PROPELLER SHAFT - REAR DIFFERENTIAL ASSEMBLY

10 . Check the End Clearance of the Half Axle
Gear
(a) Measure the end clearance of the half axle
gear with a feeler gauge.
End clearance of half axle gear: mm

NOTICE

Keep similar end clearances on both sides. If the
end clearance of the half axle gear exceeds the
limit or the vehicle creates loud noise during
turning, disassemble the differential assembly
and replace new half axle gear and planetary
gear thrust washers. (Refer to "Chapter 34. Axle
& transmission shaft - rear differential assembly,
overhaul") If the end clearance doesn't exceed
the limit and there is no loud noise during
turning, no disassembly is necessary.

11 . Disassemble the Differential Assembly
(a) Remove the planetary gear shaft locking pin
with hammer and copper rod.

NOTICE

Don't reuse the removed planetary gear shaft
34
locking pin.

(b) Remove the planetary gear shaft with hammer
and copper rod.
