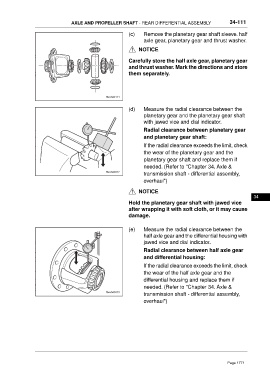

AXLE AND PROPELLER SHAFT - REAR DIFFERENTIAL ASSEMBLY 34-111

(c) Remove the planetary gear shaft sleeve. half
axle gear, planetary gear and thrust washer.
NOTICE

Carefully store the half axle gear, planetary gear
and thrust washer. Mark the directions and store
them separately.

(d) Measure the radial clearance between the
planetary gear and the planetary gear shaft
with jawed vice and dial indicator.
Radial clearance between planetary gear
and planetary gear shaft:
If the radial clearance exceeds the limit, check
the wear of the planetary gear and the
planetary gear shaft and replace them if
needed. (Refer to "Chapter 34. Axle &
transmission shaft - differential assembly,
overhaul")

NOTICE
34
Hold the planetary gear shaft with jawed vice
after wrapping it with soft cloth, or it may cause
damage.

(e) Measure the radial clearance between the
half axle gear and the differential housing with
jawed vice and dial indicator.
Radial clearance between half axle gear
and differential housing:
If the radial clearance exceeds the limit, check
the wear of the half axle gear and the
differential housing and replace them if
needed. (Refer to "Chapter 34. Axle &
transmission shaft - differential assembly,
overhaul")
