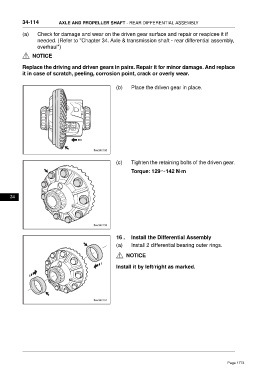

34-114 AXLE AND PROPELLER SHAFT - REAR DIFFERENTIAL ASSEMBLY

(a) Check for damage and wear on the driven gear surface and repair or reaplcee it if
needed. (Refer to "Chapter 34. Axle & transmission shaft - rear differential assembly,
overhaul")
NOTICE

Replace the driving and driven gears in pairs. Repair it for minor damage. And replace
it in case of scratch, peeling, corrosion point, crack or overly wear.

(b) Place the driven gear in place.

(c) Tighten the retaining bolts of the driven gear.

Torque: 129～142 N·m

34

16 . Install the Differential Assembly

(a) Install 2 differential bearing outer rings.

NOTICE

Install it by left/right as marked.
