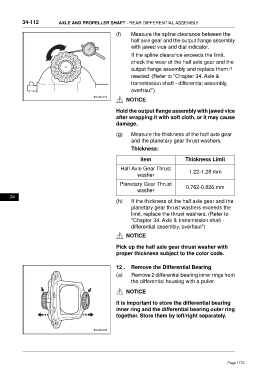

34-112 AXLE AND PROPELLER SHAFT - REAR DIFFERENTIAL ASSEMBLY

(f) Measure the spline clearance between the
half axle gear and the output flange assembly
with jawed vice and dial indicator.
If the spline clearance exceeds the limit,
check the wear of the half axle gear and the
output flange assembly and replace them if
needed. (Refer to "Chapter 34. Axle &
transmission shaft - differential assembly,
overhaul")

NOTICE

Hold the output flange assembly with jawed vice
after wrapping it with soft cloth, or it may cause
damage.

(g) Measure the thickness of the half axle gear
and the planetary gear thrust washers.
Thickness:

Item Thickness Limit

Half Axle Gear Thrust
1.22-1.28 mm
washer
Planetary Gear Thrust
0.762-0.826 mm
washer
34
(h) If the thickness of the half axle gear and the
planetary gear thrust washers exceeds the
limit, replace the thrust washers. (Refer to
"Chapter 34. Axle & transmission shaft -
differential assembly, overhaul")
NOTICE

Pick up the half axle gear thrust washer with
proper thickness subject to the color code.

12 . Remove the Differential Bearing
(a) Remove 2 differential bearing inner rings from
the differential housing with a puller.

NOTICE

It is important to store the differential bearing
inner ring and the differential bearing outer ring
together. Store them by left/right separately.
