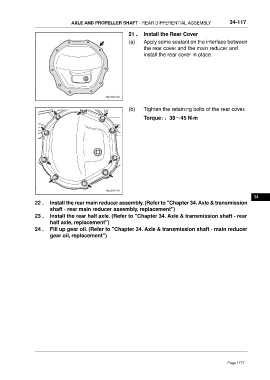

AXLE AND PROPELLER SHAFT - REAR DIFFERENTIAL ASSEMBLY 34-117

21 . Install the Rear Cover
(a) Apply some sealant on the interface between
the rear cover and the main reducer and
install the rear cover in place.

(b) Tighten the retaining bolts of the rear cover.

Torque: ：38～45 N·m

34
22 . Install the rear main reducer assembly. (Refer to "Chapter 34. Axle & transmission
shaft - rear main reducer assembly, replacement")
23 . Install the rear half axle. (Refer to "Chapter 34. Axle & transmission shaft - rear
half axle, replacement")
24 . Fill up gear oil. (Refer to "Chapter 34. Axle & transmission shaft - main reducer
gear oil, replacement")
