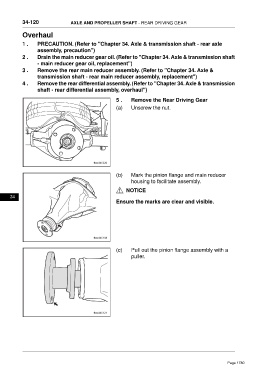

34-120 AXLE AND PROPELLER SHAFT - REAR DRIVING GEAR

Overhaul

1 . PRECAUTION. (Refer to "Chapter 34. Axle & transmission shaft - rear axle
assembly, precaution")
2 . Drain the main reducer gear oil. (Refer to "Chapter 34. Axle & transmission shaft
- main reducer gear oil, replacement")
3 . Remove the rear main reducer assembly. (Refer to "Chapter 34. Axle &
transmission shaft - rear main reducer assembly, replacement")
4 . Remove the rear differential assembly. (Refer to "Chapter 34. Axle & transmission
shaft - rear differential assembly, overhaul")

5 . Remove the Rear Driving Gear
(a) Unscrew the nut.

(b) Mark the pinion flange and main reducer
housing to facilitate assembly.
NOTICE
34
Ensure the marks are clear and visible.

(c) Pull out the pinion flange assembly with a
puller.
