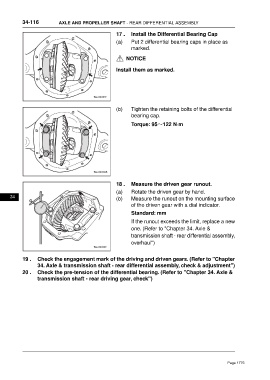

Page 1776 - Foton Workshop Manual - Tunland (AT)

34-116 AXLE AND PROPELLER SHAFT - REAR DIFFERENTIAL ASSEMBLY

17 . Install the Differential Bearing Cap
(a) Put 2 differential bearing caps in place as
marked.

NOTICE

Install them as marked.

(b) Tighten the retaining bolts of the differential
bearing cap.
Torque: 95～122 N·m

18 . Measure the driven gear runout.

(a) Rotate the driven gear by hand.
34
(b) Measure the runout on the mounting surface
of the driven gear with a dial indicator.

Standard: mm
If the runout exceeds the limit, replace a new
one. (Refer to "Chapter 34. Axle &
transmission shaft - rear differential assembly,
overhaul")

19 . Check the engagement mark of the driving and driven gears. (Refer to "Chapter
34. Axle & transmission shaft - rear differential assembly, check & adjustment")
20 . Check the pre-tension of the differential bearing. (Refer to "Chapter 34. Axle &
transmission shaft - rear driving gear, check")
