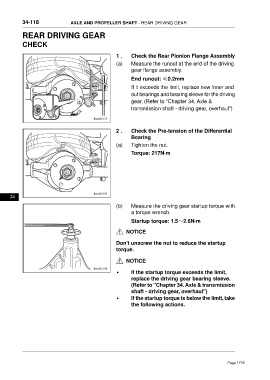

34-118 AXLE AND PROPELLER SHAFT - REAR DRIVING GEAR

REAR DRIVING GEAR

CHECK

1 . Check the Rear Pionion Flange Assembly
(a) Measure the runout at the end of the driving
gear flange assembly.

End runout: ≤0.2mm
If it exceeds the limit, replace new inner and
out bearings and bearing sleeve for the driving
gear. (Refer to "Chapter 34. Axle &
transmission shaft - driving gear, overhaul")

2 . Check the Pre-tension of the Differential
Bearing
(a) Tighten the nut.

Torque: 217N·m

34

(b) Measure the driving gear startup torque with
a torque wrench.

Startup torque: 1.5～2.6N·m

NOTICE

Don't unscrew the nut to reduce the startup
torque.

NOTICE

• If the startup torque exceeds the limit,
replace the driving gear bearing sleeve.
(Refer to "Chapter 34. Axle & transmission
shaft - driving gear, overhaul")
• If the startup torque is below the limit, take
the following actions.
