P. 1783

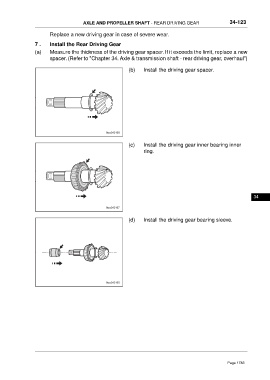

AXLE AND PROPELLER SHAFT - REAR DRIVING GEAR 34-123
Replace a new driving gear in case of severe wear.
7 . Install the Rear Driving Gear
(a) Measure the thickness of the driving gear spacer. If it exceeds the limit, replace a new
spacer. (Refer to "Chapter 34. Axle & transmission shaft - rear driving gear, overhaul")
(b) Install the driving gear spacer.
(c) Install the driving gear inner bearing inner
ring.
34
(d) Install the driving gear bearing sleeve.
