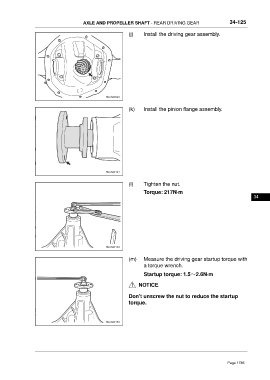

AXLE AND PROPELLER SHAFT - REAR DRIVING GEAR 34-125
(j) Install the driving gear assembly.
(k) Install the pinion flange assembly.
(l) Tighten the nut.
Torque: 217N·m
34
(m) Measure the driving gear startup torque with
a torque wrench.
Startup torque: 1.5～2.6N·m
NOTICE
Don't unscrew the nut to reduce the startup
torque.
