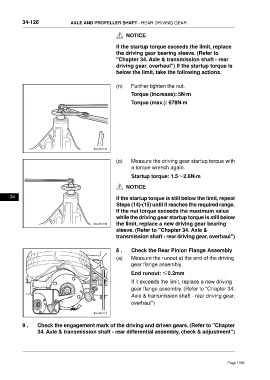

34-126 AXLE AND PROPELLER SHAFT - REAR DRIVING GEAR

NOTICE

If the startup torque exceeds the limit, replace
the driving gear bearing sleeve. (Refer to
"Chapter 34. Axle & transmission shaft - rear
driving gear, overhaul") If the startup torque is
below the limit, take the following actions.

(n) Further tighten the nut.
Torque (increase): 5N·m
Torque (max.): 678N·m

(o) Measure the driving gear startup torque with
a torque wrench again.
Startup torque: 1.5～2.6N·m

NOTICE

34 If the startup torque is still below the limit, repeat
Steps (14)-(15) until it reaches the required range.
If the nut torque exceeds the maximum value
while the driving gear startup torque is still below
the limit, replace a new driving gear bearing
sleeve. (Refer to "Chapter 34. Axle &
transmission shaft - rear driving gear, overhaul")

8 . Check the Rear Pinion Flange Assembly
(a) Measure the runout at the end of the driving
gear flange assembly.

End runout: ≤0.2mm
If it exceeds the limit, replace a new driving
gear flange assembly. (Refer to "Chapter 34.
Axle & transmission shaft - rear driving gear,
overhaul")

9 . Check the engagement mark of the driving and driven gears. (Refer to "Chapter
34. Axle & transmission shaft - rear differential assembly, check & adjustment")
