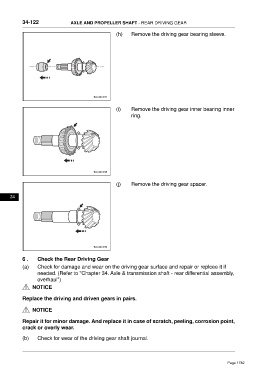

34-122 AXLE AND PROPELLER SHAFT - REAR DRIVING GEAR

(h) Remove the driving gear bearing sleeve.

(i) Remove the driving gear inner bearing inner
ring.

(j) Remove the driving gear spacer.

34

6 . Check the Rear Driving Gear
(a) Check for damage and wear on the driving gear surface and repair or replcee it if
needed. (Refer to "Chapter 34. Axle & transmission shaft - rear differential assembly,
overhaul")

NOTICE

Replace the driving and driven gears in pairs.

NOTICE

Repair it for minor damage. And replace it in case of scratch, peeling, corrosion point,
crack or overly wear.

(b) Check for wear of the driving gear shaft journal.
