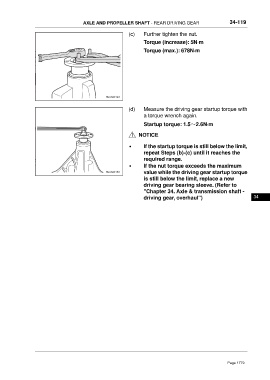

AXLE AND PROPELLER SHAFT - REAR DRIVING GEAR 34-119

(c) Further tighten the nut.
Torque (increase): 5N·m

Torque (max.): 678N·m

(d) Measure the driving gear startup torque with
a torque wrench again.
Startup torque: 1.5～2.6N·m

NOTICE

• If the startup torque is still below the limit,
repeat Steps (b)-(c) until it reaches the
required range.
• If the nut torque exceeds the maximum
value while the driving gear startup torque
is still below the limit, replace a new
driving gear bearing sleeve. (Refer to
"Chapter 34. Axle & transmission shaft -
driving gear, overhaul") 34
