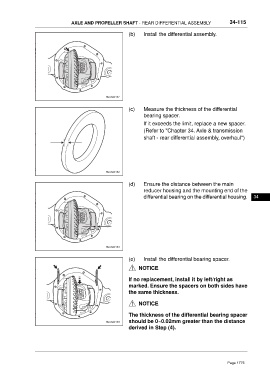

AXLE AND PROPELLER SHAFT - REAR DIFFERENTIAL ASSEMBLY 34-115

(b) Install the differential assembly.

(c) Measure the thickness of the differential
bearing spacer.
If it exceeds the limit, replace a new spacer.
(Refer to "Chapter 34. Axle & transmission
shaft - rear differential assembly, overhaul")

(d) Ensure the distance between the main
reducer housing and the mounting end of the
differential bearing on the differential housing. 34

(e) Install the differential bearing spacer.
NOTICE

If no replacement, install it by left/right as
marked. Ensure the spacers on both sides have
the same thickness.

NOTICE

The thickness of the differential bearing spacer
should be 0~0.02mm greater than the distance
derived in Step (4).
