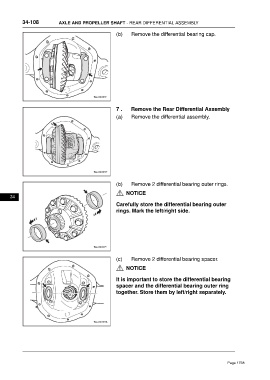

34-108 AXLE AND PROPELLER SHAFT - REAR DIFFERENTIAL ASSEMBLY
(b) Remove the differential bearing cap.
7 . Remove the Rear Differential Assembly
(a) Remove the differential assembly.
(b) Remove 2 differential bearing outer rings.
NOTICE
34
Carefully store the differential bearing outer
rings. Mark the left/right side.
(c) Remove 2 differential bearing spacer.
NOTICE
It is important to store the differential bearing
spacer and the differential bearing outer ring
together. Store them by left/right separately.
