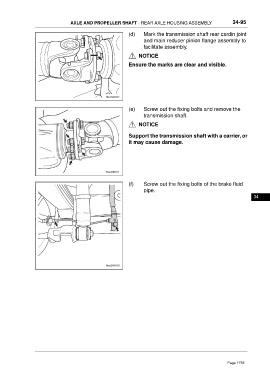

AXLE AND PROPELLER SHAFT - REAR AXLE HOUSING ASSEMBLY 34-95
(d) Mark the transmission shaft rear cardin joint
and main reducer pinion flange assembly to
facilitate assembly.
NOTICE
Ensure the marks are clear and visible.
(e) Screw out the fixing bolts and remove the
transmission shaft.
NOTICE
Support the transmission shaft with a carrier, or
it may cause damage.
(f) Screw out the fixing bolts of the brake fluid
pipe.
34
