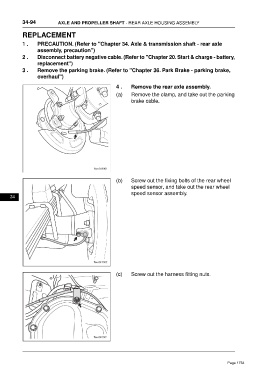

34-94 AXLE AND PROPELLER SHAFT - REAR AXLE HOUSING ASSEMBLY
REPLACEMENT
1 . PRECAUTION. (Refer to "Chapter 34. Axle & transmission shaft - rear axle
assembly, precaution")
2 . Disconnect battery negative cable. (Refer to "Chapter 20. Start & charge - battery,
replacement")
3 . Remove the parking brake. (Refer to "Chapter 36. Park Brake - parking brake,
overhaul")
4 . Remove the rear axle assembly.
(a) Remove the clamp, and take out the parking
brake cable.
(b) Screw out the fixing bolts of the rear wheel
speed sensor, and take out the rear wheel
speed sensor assembly.
34
(c) Screw out the harness fitting nuts.
