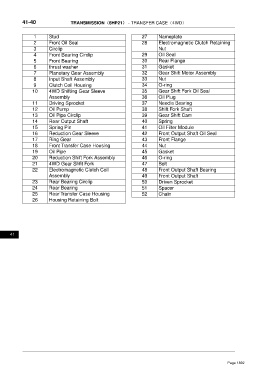

41-40 TRANSMISSION（6HP21） - TRANSFER CASE（4WD）

1 Stud 27 Nameplate
2 Front Oil Seal 28 Electromagnetic Clutch Retaining
3 Circlip Nut
4 Front Bearing Circlip 29 Oil Seal
5 Front Bearing 30 Rear Flange
6 thrust washer 31 Gasket
7 Planetary Gear Assembly 32 Gear Shift Motor Assembly
8 Input Shaft Assembly 33 Nut
9 Clutch Coil Housing 34 O-ring
10 4WD Shifting Gear Sleeve 35 Gear Shift Fork Oil Seal
Assembly 36 Oil Plug
11 Driving Sprocket 37 Needle Bearing
12 Oil Pump 38 Shift Fork Shaft
13 Oil Pipe Circlip 39 Gear Shift Cam
14 Rear Output Shaft 40 Spring
15 Spring Pin 41 Oil Filter Module
16 Reduction Gear Sleeve 42 Front Output Shaft Oil Seal
17 Ring Gear 43 Front Flange
18 Front Transfer Case Housing 44 Nut
19 Oil Pipe 45 Gasket
20 Reduction Shift Fork Assembly 46 O-ring
21 4WD Gear Shfit Fork 47 Bolt
22 Electromagnetic Clutch Coil 48 Front Output Shaft Bearing
Assembly 49 Front Output Shaft
23 Rear Bearing Circlip 50 Driven Sprocket
24 Rear Bearing 51 Spacer
25 Rear Transfer Case Housing 52 Chain
26 Housing Retaining Bolt

41
