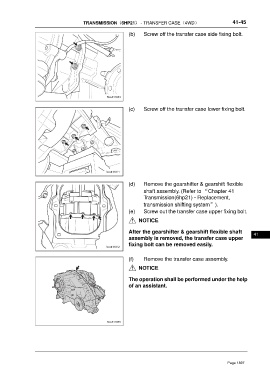

TRANSMISSION（6HP21） - TRANSFER CASE（4WD） 41-45
(b) Screw off the transfer case side fixing bolt.
(c) Screw off the transfer case lower fixing bolt.
(d) Remove the gearshifter & gearshift flexible
shaft assembly. (Refer to “Chapter 41
Transmission(6hp21) - Replacement,
transmission shifting system”).
(e) Screw out the transfer case upper fixing bolt.
NOTICE
After the gearshifter & gearshift flexible shaft
41
assembly is removed, the transfer case upper
fixing bolt can be removed easily.
(f) Remove the transfer case assembly.
NOTICE
The operation shall be performed under the help
of an assistant.
