41-46 TRANSMISSION（6HP21） - TRANSFER CASE（4WD）

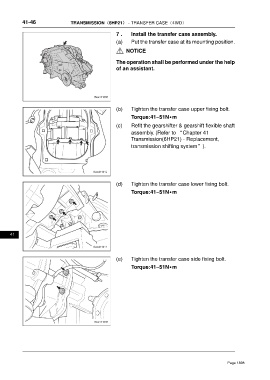

7 . Install the transfer case assembly.
(a) Put the transfer case at its mounting position.

NOTICE

The operation shall be performed under the help
of an assistant.

(b) Tighten the transfer case upper fixing bolt.
Torque:41~51N•m

(c) Refit the gearshifter & gearshift flexible shaft
assembly. (Refer to “Chapter 41
Transmission(6HP21) - Replacement,
transmission shifting system”).

(d) Tighten the transfer case lower fixing bolt.

Torque:41~51N•m

41

(e) Tighten the transfer case side fixing bolt.
Torque:41~51N•m
