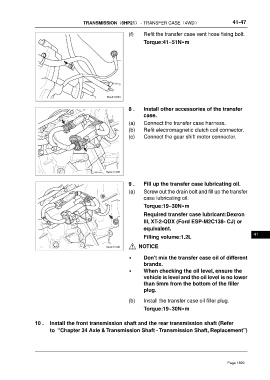

Page 1899 - Foton Workshop Manual - Tunland (AT)

TRANSMISSION（6HP21） - TRANSFER CASE（4WD） 41-47

(f) Refit the transfer case vent hose fixing bolt.
Torque:41~51N•m

8 . Install other accessories of the transfer
case.
(a) Connect the transfer case harness.
(b) Refit electromagnetic clutch coil connector.
(c) Connect the gear shift motor connector.

9 . Fill up the transfer case lubricating oil.

(a) Screw out the drain bolt and fill up the transfer
case lubricating oil.

Torque:19~30N•m
Required transfer case lubricant:Dexron
III, XT-2-QDX (Ford ESP-M2C138- CJ) or
equivalent.
41
Filling volume:1.2L
NOTICE

• Don't mix the transfer case oil of different
brands.
• When checking the oil level, ensure the
vehicle is level and the oil level is no lower
than 5mm from the bottom of the filler
plug.

(b) Install the transfer case oil filler plug.

Torque:19~30N•m

10 . Install the front transmission shaft and the rear transmission shaft (Refer
to“Chapter 34 Axle & Transmission Shaft - Transmission Shaft, Replacement")
