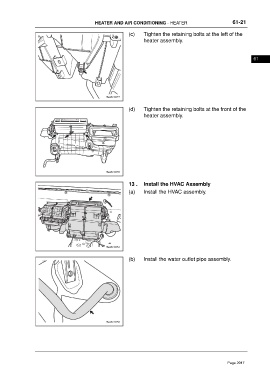

HEATER AND AIR CONDITIONING - HEATER 61-21
(c) Tighten the retaining bolts at the left of the
heater assembly.
61
(d) Tighten the retaining bolts at the front of the
heater assembly.
13 . Install the HVAC Assembly
(a) Install the HVAC assembly.
(b) Install the water outlet pipe assembly.
