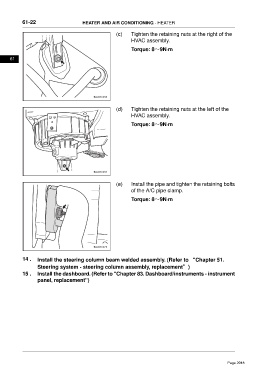

61-22 HEATER AND AIR CONDITIONING - HEATER

(c) Tighten the retaining nuts at the right of the
HVAC assembly.
Torque: 8～9N·m

61

(d) Tighten the retaining nuts at the left of the
HVAC assembly.
Torque: 8～9N·m

(e) Install the pipe and tighten the retaining bolts
of the A/C pipe clamp.

Torque: 8～9N·m

14 . Install the steering column beam welded assembly. (Refer to “Chapter 51.
Steering system - steering column assembly, replacement”)
15 . Install the dashboard. (Refer to "Chapter 83. Dashboard/instruments - instrument
panel, replacement")
