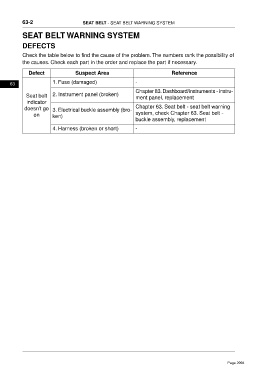

63-2 SEAT BELT - SEAT BELT WARNING SYSTEM

SEAT BELT WARNING SYSTEM

DEFECTS

Check the table below to find the cause of the problem. The numbers rank the possibility of
the causes. Check each part in the order and replace the part if necessary.

Defect Suspect Area Reference

1. Fuse (damaged) -
63
Chapter 83. Dashboard/instruments - instru-
Seat belt 2. Instrument panel (broken) ment panel, replacement
indicator
Chapter 63. Seat belt - seat belt warning
doesn't go 3. Electrical buckle assembly (bro-
on ken) system, check Chapter 63. Seat belt -
buckle assembly, replacement

4. Harness (broken or short) -
