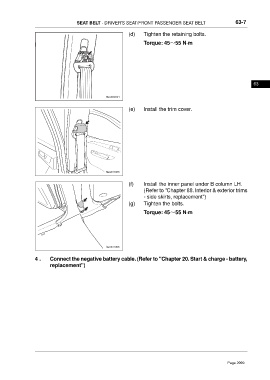

SEAT BELT - DRIVER'S SEAT/FRONT PASSENGER SEAT BELT 63-7
(d) Tighten the retaining bolts.
Torque: 45～55 N·m
63
(e) Install the trim cover.
ftwx631006
(f) Install the inner panel under B column LH.
(Refer to "Chapter 88. Interior & exterior trims
- side skirts, replacement")
(g) Tighten the bolts.
Torque: 45～55 N·m
ftwx631005
4 . Connect the negative battery cable. (Refer to "Chapter 20. Start & charge - battery,
replacement")
