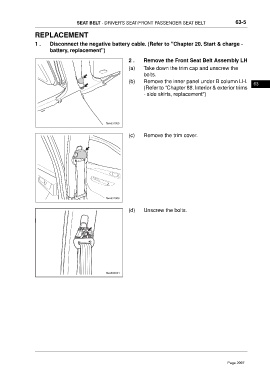

SEAT BELT - DRIVER'S SEAT/FRONT PASSENGER SEAT BELT 63-5
REPLACEMENT
1 . Disconnect the negative battery cable. (Refer to "Chapter 20. Start & charge -
battery, replacement")
2 . Remove the Front Seat Belt Assembly LH
(a) Take down the trim cap and unscrew the
bolts.
(b) Remove the inner panel under B column LH.
63
(Refer to "Chapter 88. Interior & exterior trims
- side skirts, replacement")
ftwx631005
(c) Remove the trim cover.
ftwx631006
(d) Unscrew the bolts.
