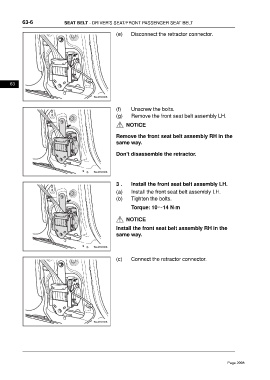

Page 2098 - Foton Workshop Manual - Tunland (AT)
P. 2098
63-6 SEAT BELT - DRIVER'S SEAT/FRONT PASSENGER SEAT BELT
(e) Disconnect the retractor connector.
63
(f) Unscrew the bolts.
(g) Remove the front seat belt assembly LH.
NOTICE
Remove the front seat belt assembly RH in the
same way.
Don't disassemble the retractor.
3 . Install the front seat belt assembly LH.
(a) Install the front seat belt assembly LH.
(b) Tighten the bolts.
Torque: 10～14 N·m
NOTICE
Install the front seat belt assembly RH in the
same way.
(c) Connect the retractor connector.
Page 2098
