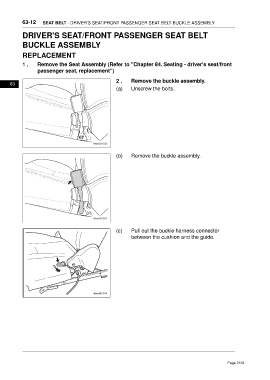

63-12    SEAT BELT - DRIVER'S SEAT/FRONT PASSENGER SEAT BELT BUCKLE ASSEMBLY

           DRIVER'S SEAT/FRONT PASSENGER SEAT BELT

           BUCKLE ASSEMBLY

           REPLACEMENT

           1 .    Remove the Seat Assembly (Refer to "Chapter 84. Seating - driver's seat/front
                  passenger seat, replacement")

                                                      2 .    Remove the buckle assembly.
      63
                                                      (a)    Unscrew the bolts.














                                           ftwx631002

                                                      (b)    Remove the buckle assembly.
















                                           ftwx631001


                                                      (c)    Pull out the buckle harness connector
                                                             between the cushion and the guide.
