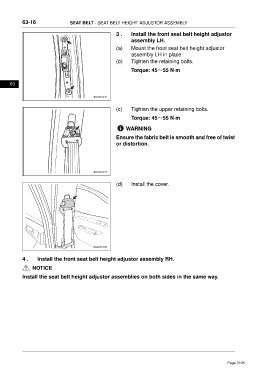

63-16 SEAT BELT - SEAT BELT HEIGHT ADJUSTOR ASSEMBLY
3 . Install the front seat belt height adjustor
assembly LH.
(a) Mount the front seat belt height adjustor
assembly LH in place.
(b) Tighten the retaining bolts.
Torque: 45～55 N·m
63
(c) Tighten the upper retaining bolts.
Torque: 45～55 N·m
WARNING
Ensure the fabric belt is smooth and free of twist
or distortion.
(d) Install the cover.
ftwx631006
4 . Install the front seat belt height adjustor assembly RH.
NOTICE
Install the seat belt height adjustor assemblies on both sides in the same way.
