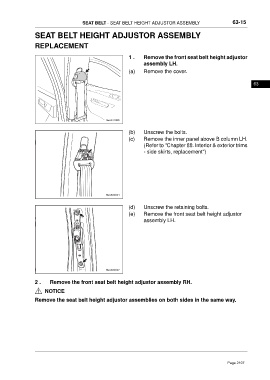

Page 2107 - Foton Workshop Manual - Tunland (AT)

SEAT BELT - SEAT BELT HEIGHT ADJUSTOR ASSEMBLY 63-15

SEAT BELT HEIGHT ADJUSTOR ASSEMBLY

REPLACEMENT

1 . Remove the front seat belt height adjustor
assembly LH.

(a) Remove the cover.

63

ftwx631006

(b) Unscrew the bolts.
(c) Remove the inner panel above B column LH.
(Refer to "Chapter 88. Interior & exterior trims
- side skirts, replacement")

(d) Unscrew the retaining bolts.
(e) Remove the front seat belt height adjustor
assembly LH.

2 . Remove the front seat belt height adjustor assembly RH.

NOTICE
Remove the seat belt height adjustor assemblies on both sides in the same way.

Page 2107
