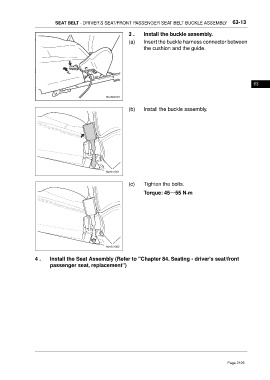

SEAT BELT - DRIVER'S SEAT/FRONT PASSENGER SEAT BELT BUCKLE ASSEMBLY              63-13

                                                           3 .    Install the buckle assembly.
                                                           (a)    Insert the buckle harness connector between
                                                                  the cushion and the guide.








                                                                                                                     63





                                                           (b)    Install the buckle assembly.
















                                                 ftwx631001

                                                           (c)    Tighten the bolts.

                                                                  Torque: 45～55 N·m













                                                 ftwx631002

                 4 .    Install the Seat Assembly (Refer to "Chapter 84. Seating - driver's seat/front
                        passenger seat, replacement")
