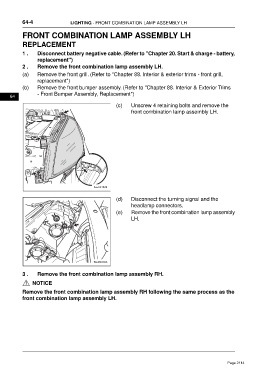

64-4 LIGHTING - FRONT COMBINATION LAMP ASSEMBLY LH

FRONT COMBINATION LAMP ASSEMBLY LH

REPLACEMENT
1 . Disconnect battery negative cable. (Refer to "Chapter 20. Start & charge - battery,
replacement")
2 . Remove the front combination lamp assembly LH.
(a) Remove the front grill. (Refer to "Chapter 88. Interior & exterior trims - front grill,
replacement")
(b) Remove the front bumper assembly. (Refer to "Chapter 88. Interior & Exterior Trims
- Front Bumper Assembly, Replacement")
64
(c) Unscrew 4 retaining bolts and remove the
front combination lamp assembly LH.

ftwx641003

(d) Disconnect the turning signal and the
headlamp connectors.
(e) Remove the front combination lamp assembly
LH.

3 . Remove the front combination lamp assembly RH.
NOTICE

Remove the front combination lamp assembly RH following the same process as the
front combination lamp assembly LH.
