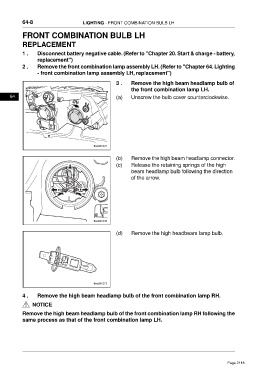

64-8 LIGHTING - FRONT COMBINATION BULB LH

FRONT COMBINATION BULB LH

REPLACEMENT
1 . Disconnect battery negative cable. (Refer to "Chapter 20. Start & charge - battery,
replacement")
2 . Remove the front combination lamp assembly LH. (Refer to "Chapter 64. Lighting
- front combination lamp assembly LH, replacement")

3 . Remove the high beam headlamp bulb of
the front combination lamp LH.
64 (a) Unscrew the bulb cover counterclockwise.

(b) Remove the high beam headlamp connector.
(c) Release the retaining springs of the high
beam headlamp bulb following the direction
of the arrow.

(d) Remove the high headbeam lamp bulb.

4 . Remove the high beam headlamp bulb of the front combination lamp RH.

NOTICE
Remove the high beam headlamp bulb of the front combination lamp RH following the
same process as that of the front combination lamp LH.
