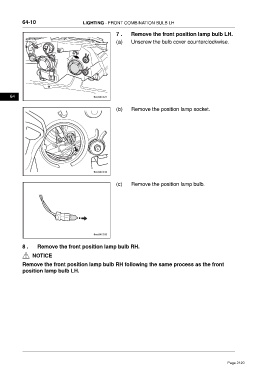

64-10                       LIGHTING - FRONT COMBINATION BULB LH

                                                      7 .    Remove the front position lamp bulb LH.
                                                      (a)    Unscrew the bulb cover counterclockwise.














      64

                                                      (b)    Remove the position lamp socket.



















                                                      (c)    Remove the position lamp bulb.
















           8 .    Remove the front position lamp bulb RH.

                NOTICE
           Remove the front position lamp bulb RH following the same process as the front
           position lamp bulb LH.
