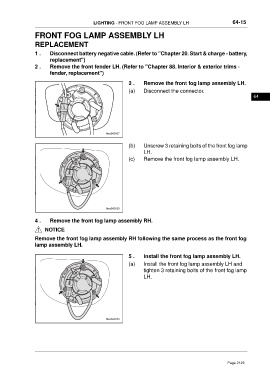

LIGHTING - FRONT FOG LAMP ASSEMBLY LH 64-15

FRONT FOG LAMP ASSEMBLY LH

REPLACEMENT
1 . Disconnect battery negative cable. (Refer to "Chapter 20. Start & charge - battery,
replacement")
2 . Remove the front fender LH. (Refer to "Chapter 88. Interior & exterior trims -
fender, replacement")

3 . Remove the front fog lamp assembly LH.
(a) Disconnect the connector.
64

(b) Unscrew 3 retaining bolts of the front fog lamp
LH.
(c) Remove the front fog lamp assembly LH.

4 . Remove the front fog lamp assembly RH.
NOTICE

Remove the front fog lamp assembly RH following the same process as the front fog
lamp assembly LH.

5 . Install the front fog lamp assembly LH.
(a) Install the front fog lamp assembly LH and
tighten 3 retaining bolts of the front fog lamp
LH.
