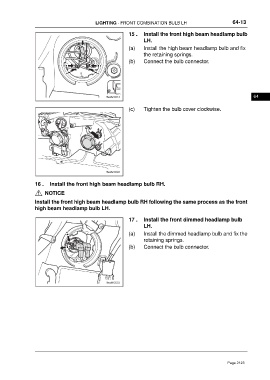

LIGHTING - FRONT COMBINATION BULB LH 64-13
15 . Install the front high beam headlamp bulb
LH.
(a) Install the high beam headlamp bulb and fix
the retaining springs.
(b) Connect the bulb connector.
64
(c) Tighten the bulb cover clockwise.
16 . Install the front high beam headlamp bulb RH.
NOTICE
Install the front high beam headlamp bulb RH following the same process as the front
high beam headlamp bulb LH.
17 . Install the front dimmed headlamp bulb
LH.
(a) Install the dimmed headlamp bulb and fix the
retaining springs.
(b) Connect the bulb connector.
