LIGHTING - FRONT FOG LAMP ASSEMBLY LH 64-17
ADJUSTMENT
1 . Set the vehicle into the following conditions:
(a) Tire pressure is within the specified range. (Refer to "Chapter 33.Wheel & tire - wheel
& tire assembly, on-vehicle inspection")
(b) Start the engine.
2 . Adjust the fog lamp range.

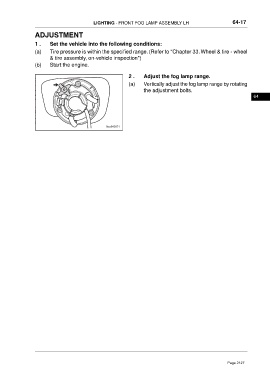

(a) Vertically adjust the fog lamp range by rotating
the adjustment bolts.
