Page 2122 - Foton Workshop Manual - Tunland (AT)
P. 2122

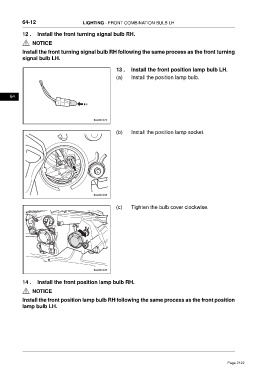

64-12 LIGHTING - FRONT COMBINATION BULB LH
12 . Install the front turning signal bulb RH.
NOTICE
Install the front turning signal bulb RH following the same process as the front turning
signal bulb LH.
13 . Install the front position lamp bulb LH.
(a) Install the position lamp bulb.
64
(b) Install the position lamp socket.
(c) Tighten the bulb cover clockwise.
14 . Install the front position lamp bulb RH.
NOTICE
Install the front position lamp bulb RH following the same process as the front position
lamp bulb LH.
