P. 2119

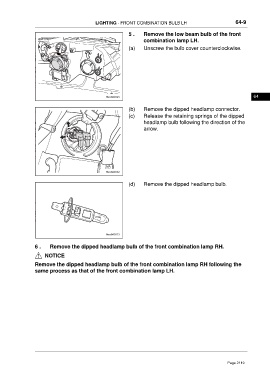

LIGHTING - FRONT COMBINATION BULB LH 64-9
5 . Remove the low beam bulb of the front
combination lamp LH.
(a) Unscrew the bulb cover counterclockwise.
64
(b) Remove the dipped headlamp connector.
(c) Release the retaining springs of the dipped
headlamp bulb following the direction of the
arrow.
(d) Remove the dipped headlamp bulb.
6 . Remove the dipped headlamp bulb of the front combination lamp RH.
NOTICE
Remove the dipped headlamp bulb of the front combination lamp RH following the
same process as that of the front combination lamp LH.
