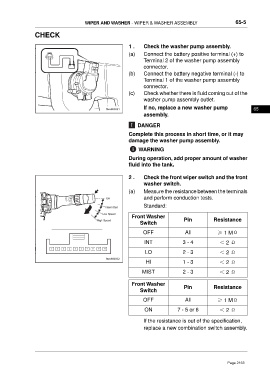

WIPER AND WASHER - WIPER & WASHER ASSEMBLY 65-5

CHECK

1 . Check the washer pump assembly.

(a) Connect the battery positive terminal (+) to
Terminal 2 of the washer pump assembly
connector.
(b) Connect the battery negative terminal (-) to
Terminal 1 of the washer pump assembly
connector.
(c) Check whether there is fluid coming out of the
washer pump assembly outlet.
If no, replace a new washer pump 65
assembly.

DANGER
Complete this process in short time, or it may
damage the washer pump assembly.

WARNING
During operation, add proper amount of washer
fluid into the tank.

2 . Check the front wiper switch and the front
washer switch.

(a) Measure the resistance between the terminals
and perform conduction tests.

Standard:

Front Washer
Pin Resistance
Switch
OFF All ≥ 1 MΩ

INT 3 - 4 ＜ 2 Ω

LO 2 - 3 ＜ 2 Ω
HI 1 - 3 ＜ 2 Ω

MIST 2 - 3 ＜ 2 Ω

Front Washer
Pin Resistance
Switch
OFF All ≥ 1 MΩ

ON 7 - 5 or 6 ＜ 2 Ω

If the resistance is out of the specification,
replace a new combination switch assembly.
