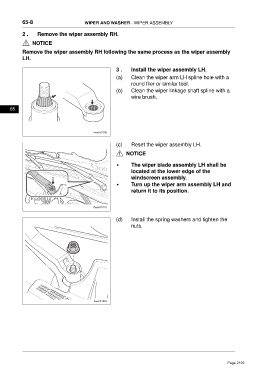

65-8 WIPER AND WASHER - WIPER ASSEMBLY

2 . Remove the wiper assembly RH.

NOTICE
Remove the wiper assembly RH following the same process as the wiper assembly
LH.

3 . Install the wiper assembly LH.
(a) Clean the wiper arm LH spline hole with a
round filer or similar tool.
(b) Clean the wiper linkage shaft spline with a
wire brush.

65

ftwx651006

(c) Reset the wiper assembly LH.

NOTICE

• The wiper blade assembly LH shall be
located at the lower edge of the
windscreen assembly.
• Turn up the wiper arm assembly LH and
return it to its position.

ftwx651007

(d) Install the spring washers and tighten the
nuts.

ftwx651004
