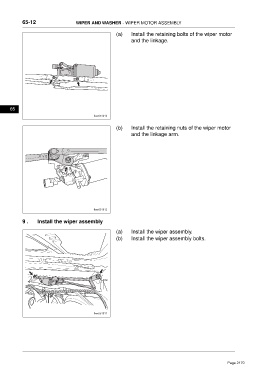

65-12 WIPER AND WASHER - WIPER MOTOR ASSEMBLY
(a) Install the retaining bolts of the wiper motor
and the linkage.
65
ftwx651013
(b) Install the retaining nuts of the wiper motor
and the linkage arm.
ftwx651012
9 . Install the wiper assembly
(a) Install the wiper assembly.
(b) Install the wiper assembly bolts.
ftwx651011
