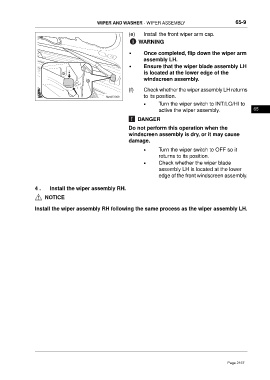

WIPER AND WASHER - WIPER ASSEMBLY 65-9

(e) Install the front wiper arm cap.
WARNING

• Once completed, flip down the wiper arm
assembly LH.
• Ensure that the wiper blade assembly LH
is located at the lower edge of the
windscreen assembly.

(f) Check whether the wiper assembly LH returns
ftwx651009 to its position.
• Turn the wiper switch to INT/LO/HI to
active the wiper assembly. 65

DANGER

Do not perform this operation when the
windscreen assembly is dry, or it may cause
damage.

• Turn the wiper switch to OFF so it
returns to its position.
• Check whether the wiper blade
assembly LH is located at the lower
edge of the front windscreen assembly.

4 . Install the wiper assembly RH.
NOTICE

Install the wiper assembly RH following the same process as the wiper assembly LH.
