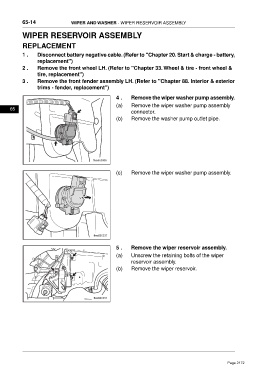

65-14 WIPER AND WASHER - WIPER RESERVOIR ASSEMBLY

WIPER RESERVOIR ASSEMBLY

REPLACEMENT

1 . Disconnect battery negative cable. (Refer to "Chapter 20. Start & charge - battery,
replacement")
2 . Remove the front wheel LH. (Refer to "Chapter 33. Wheel & tire - front wheel &
tire, replacement")
3 . Remove the front fender assembly LH. (Refer to "Chapter 88. Interior & exterior
trims - fender, replacement")

4 . Remove the wiper washer pump assembly.
(a) Remove the wiper washer pump assembly
65
connector.
(b) Remove the washer pump outlet pipe.

(c) Remove the wiper washer pump assembly.

5 . Remove the wiper reservoir assembly.

(a) Unscrew the retaining bolts of the wiper
reservoir assembly.
(b) Remove the wiper reservoir.
