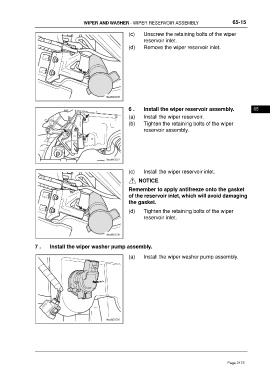

Page 2173 - Foton Workshop Manual - Tunland (AT)

WIPER AND WASHER - WIPER RESERVOIR ASSEMBLY 65-15

(c) Unscrew the retaining bolts of the wiper
reservoir inlet.
(d) Remove the wiper reservoir inlet.

6 . Install the wiper reservoir assembly. 65
(a) Install the wiper reservoir.
(b) Tighten the retaining bolts of the wiper
reservoir assembly.

(c) Install the wiper reservoir inlet.
NOTICE

Remember to apply antifreeze onto the gasket
of the reservoir inlet, which will avoid damaging
the gasket.

(d) Tighten the retaining bolts of the wiper
reservoir inlet.

7 . Install the wiper washer pump assembly.

(a) Install the wiper washer pump assembly.

Page 2173
