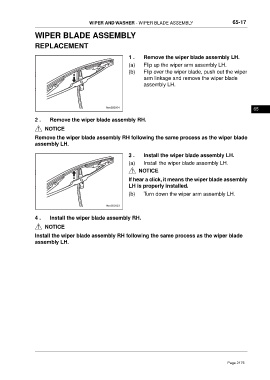

WIPER AND WASHER - WIPER BLADE ASSEMBLY 65-17

WIPER BLADE ASSEMBLY

REPLACEMENT

1 . Remove the wiper blade assembly LH.
(a) Flip up the wiper arm assembly LH.
(b) Flip over the wiper blade, push out the wiper
arm linkage and remove the wiper blade
assembly LH.

65

2 . Remove the wiper blade assembly RH.

NOTICE
Remove the wiper blade assembly RH following the same process as the wiper blade
assembly LH.

3 . Install the wiper blade assembly LH.

(a) Install the wiper blade assembly LH.
NOTICE
If hear a click, it means the wiper blade assembly
LH is properly installed.
(b) Turn down the wiper arm assembly LH.

4 . Install the wiper blade assembly RH.

NOTICE
Install the wiper blade assembly RH following the same process as the wiper blade
assembly LH.
