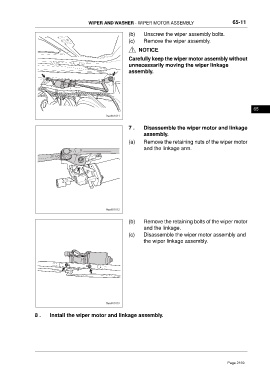

WIPER AND WASHER - WIPER MOTOR ASSEMBLY 65-11
(b) Unscrew the wiper assembly bolts.
(c) Remove the wiper assembly.
NOTICE
Carefully keep the wiper motor assembly without
unnecessarily moving the wiper linkage
assembly.
65
ftwx651011
7 . Disassemble the wiper motor and linkage
assembly.
(a) Remove the retaining nuts of the wiper motor
and the linkage arm.
ftwx651012
(b) Remove the retaining bolts of the wiper motor
and the linkage.
(c) Disassemble the wiper motor assembly and
the wiper linkage assembly.
ftwx651013
8 . Install the wiper motor and linkage assembly.
