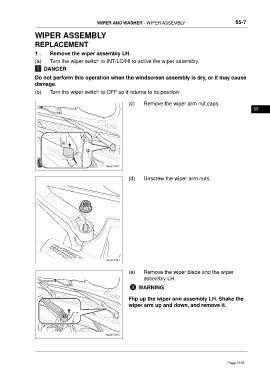

WIPER AND WASHER - WIPER ASSEMBLY 65-7

WIPER ASSEMBLY

REPLACEMENT
1 . Remove the wiper assembly LH.

(a) Turn the wiper switch to INT/LO/HI to active the wiper assembly.
DANGER
Do not perform this operation when the windscreen assembly is dry, or it may cause
damage.

(b) Turn the wiper switch to OFF so it returns to its position.

(c) Remove the wiper arm nut caps.
65

ftwx651003

(d) Unscrew the wiper arm nuts.

ftwx651004

(e) Remove the wiper blade and the wiper
assembly LH.

WARNING

Flip up the wiper arm assembly LH. Shake the
wiper arm up and down, and remove it.

ftwx651005
