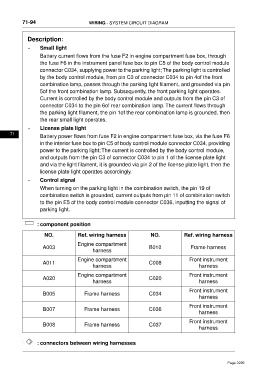

Page 2296 - Foton Workshop Manual - Tunland (AT)

71-94 WIRING - SYSTEM CIRCUIT DIAGRAM

Description:

• Small light
Battery current flows from the fuse F2 in engine compartment fuse box, through
the fuse F6 in the instrument panel fuse box to pin C5 of the body control module
connector C034, supplying power to the parking light;The parking light is controlled
by the body control module, from pin C3 of connector C034 to pin 4of the front
combination lamp, passes through the parking light filament, and grounded via pin
5of the front combination lamp. Subsequently, the front parking light operates.
Current is controlled by the body control module and outputs from the pin C3 of
connector C034 to the pin 6of rear combination lamp. The current flows through
the parking light filament, the pin 1of the rear combination lamp is grounded, then
the rear small light operates.

• License plate light
71
Battery power flows from fuse F2 in engine compartment fuse box, via the fuse F6
in the interior fuse box to pin C5 of body control module connector C034, providing
power to the parking light; The current is controlled by the body control module,
and outputs from the pin C3 of connector C034 to pin 1 of the license plate light
and via the light filament, it is grounded via pin 2 of the license plate light, then the
license plate light operates accordingly.
• Control signal

When turning on the parking light in the combination switch, the pin 19 of
combination switch is grounded, current outputs from pin 11 of combination switch
to the pin E5 of the body control module connector C036, inputting the signal of
parking light.

: component position

NO. Ref. wiring harness NO. Ref. wiring harness
Engine compartment
A003 B010 Frame harness
harness

Engine compartment Front instrument
A011 C008
harness harness
Engine compartment Front instrument
A020 C020
harness harness

Front instrument
B005 Frame harness C034
harness
Front instrument
B007 Frame harness C036
harness
Front instrument
B008 Frame harness C037
harness

: connectors between wiring harnesses

Page 2296
