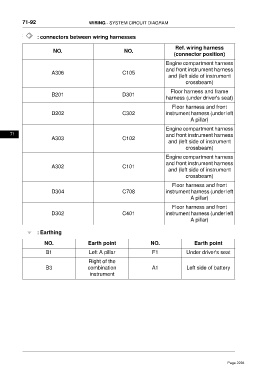

71-92 WIRING - SYSTEM CIRCUIT DIAGRAM

: connectors between wiring harnesses

Ref. wiring harness
NO. NO.
(connector position)
Engine compartment harness
and front instrument harness
A306 C105
and (left side of instrument
crossbeam)
Floor harness and frame
B201 D301
harness (under driver's seat)

Floor harness and front
D202 C302 instrument harness (under left
A pillar)

Engine compartment harness
71 and front instrument harness
A303 C102
and (left side of instrument
crossbeam)

Engine compartment harness
and front instrument harness
A302 C101
and (left side of instrument
crossbeam)

Floor harness and front
D304 C708 instrument harness (under left
A pillar)

Floor harness and front
D302 C401 instrument harness (under left
A pillar)

: Earthing

NO. Earth point NO. Earth point

B1 Left A pillar F1 Under driver's seat
Right of the
B3 combination A1 Left side of battery
instrument
